The Complete Audi and VW Key Replacement Guide for Sydney Owners
We know the feeling of staring at a silent dashboard or a locked door while the rest of Sydney rushes by. German engineering is brilliant until you lose the key that makes it all work. If you own an Audi or Volkswagen in the Harbour City and need a replacement from a European car locksmith specialist, you are likely discovering that these keys are far more complex than the ones for a Toyota or Hyundai.
This guide breaks down exactly how the Volkswagen Group (VAG) security systems work and what your options are. We will explain the specific technologies involved, the real-world costs you can expect in 2026, and why the “dealer vs. locksmith” decision often comes down to how long you can wait.

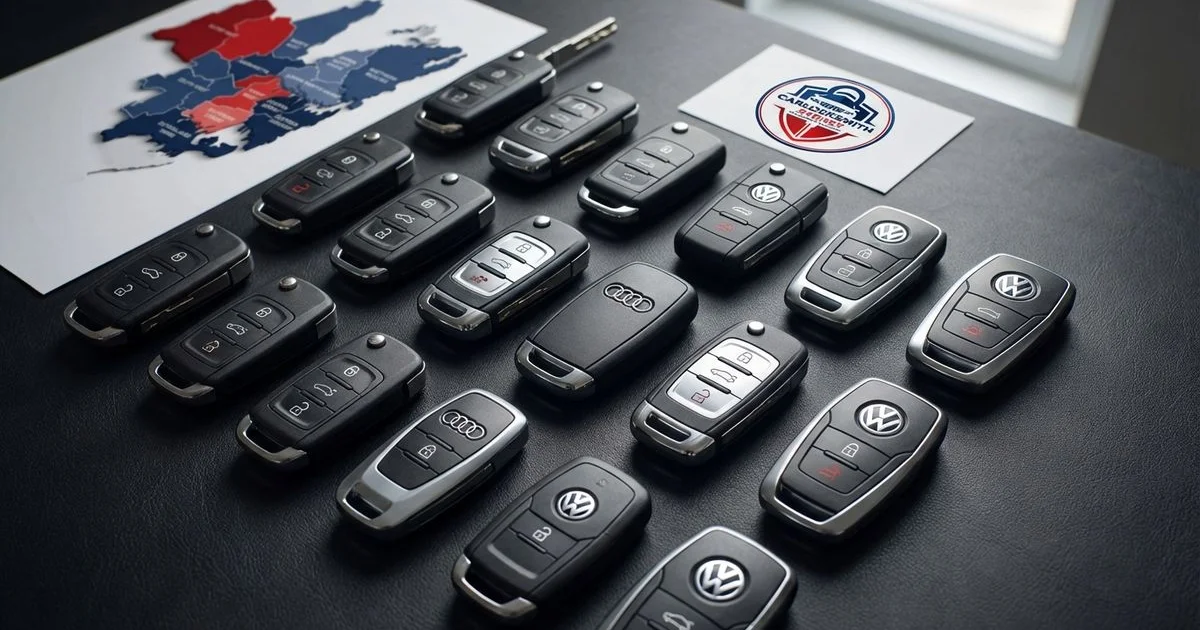

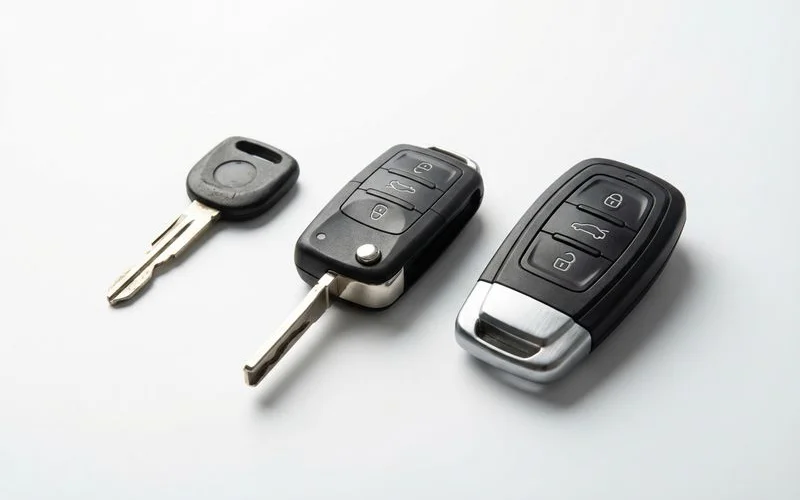

Types of Audi and VW Keys
VAG has used several distinct key generations over the last three decades. Identifying which one you have is the first step in understanding the replacement process.
Standard Transponder Keys (1990s to Early 2000s)
The earliest transponder keys used by Audi and VW are simple metal blades with a small glass chip embedded in the plastic head. These keys have no remote buttons and operate on the older IMMO1 or IMMO2 platforms.
Why this matters: These are the only VAG keys that are relatively cheap to replace. The “HU66” key blade used here remained the standard for decades, but the electronics inside have changed drastically.
Common vehicles: VW Golf Mk3/Mk4, Audi A4 B5, VW Passat B5
Flip Keys (Mid-2000s to Present)
The classic VAG “switchblade” key features a metal blade that folds into the fob. It combines remote locking buttons with a more advanced transponder chip (often a Megamos crypto chip). These work with IMMO3 and IMMO4 systems.
Common vehicles: VW Golf Mk5/Mk6/Mk7, Audi A3, VW Polo, Audi A4 B6/B7
Smart Keys & Keyless Entry (2010s to Present)
Newer Audi and VW models use proximity smart keys that allow for push-button starts. These are sophisticated mini-computers that communicate with the car’s “Comfort Control Module.” They operate on the complex IMMO5, MQB, or MLB Evo platforms.
The “So What” for you: You cannot just cut a blade and expect these to work. The programming requires connecting to the manufacturer’s server to approve the new key, a process that requires authorised credentials.
Common vehicles: Audi A4 B8/B9, Audi Q5, VW Golf Mk7.5/Mk8, VW Tiguan, VW Arteon
Understanding VAG Immobiliser Systems
The immobiliser is the invisible security guard that stops your engine from running without a recognised key. VAG systems are notoriously secure, which is great for theft prevention but a challenge when you lose your keys.
IMMO1 and IMMO2
These systems from the mid-90s use fixed-code transponders. We can usually clone these keys quickly because the security data is static and easy to read.
IMMO3 and IMMO3+
Introduced around 2000, these systems added a layer of difficulty by requiring a specific PIN code to program keys. The PIN is stored in the instrument cluster. We must extract this 4-digit code using diagnostic tools before the car will accept a new key.
IMMO4
Used from approximately 2005 to 2014, IMMO4 moved critical security data into the ECU (Engine Control Unit). The encryption became much harder to crack. Extracting the PIN now often requires reading the memory of the engine computer directly, rather than just plugging into the port under the steering wheel.
IMMO5 and MQB (The Modern Standard)
The current generation, found in vehicles from 2014 onwards, is the MQB (Modular Transverse Matrix) platform. It uses 128-bit AES encryption and “Component Protection.”
The Insider Reality: This system is “online-only” for many functions. Programming a key often requires a connection to the Volkswagen “GEKO” server system. If a locksmith does not have a valid GEKO login or high-end tools like the VVDI2 or Autel IM608, they cannot program these keys.
The PIN Extraction Process
One factor that separates European cars from Japanese or Korean models is the PIN code requirement. You cannot simply buy a key online and hope it pairs; the locksmith needs to electronically “introduce” the key to the car using a unique password.
Where Is the PIN Stored?
| Immobiliser Generation | PIN Location | Complexity |
|---|---|---|
| IMMO1/IMMO2 | Instrument cluster | Low |
| IMMO3/IMMO3+ | Instrument cluster | Medium |
| IMMO4 | ECU (Engine Control Unit) | High |
| IMMO5/MQB | BCM (Body Control Module) & Online Server | Very High |

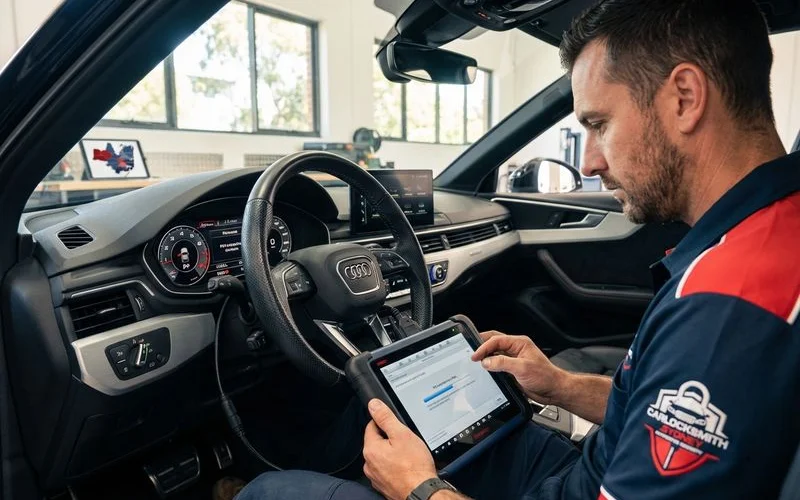

How Is the PIN Extracted?
For older IMMO3 systems, we access the instrument cluster through the OBD port to read the code. IMMO4 vehicles often require us to pull data from the ECU as part of ECU immobiliser programming.
The MQB Challenge: For the newest MQB vehicles (like a late-model Golf or Tiguan), especially if all keys are lost, the process is invasive. We sometimes have to remove the dashboard instrument cluster physically to read the “sync data” directly from the circuit board. This is precise, delicate work that general locksmiths will usually refuse to do.
Cost of Audi and VW Key Replacement in Sydney (2026 Estimates)
Pricing in Sydney varies based on the “generation” of your car’s electronics. A 2010 Golf and a 2020 Golf look similar but have vastly different security systems.
Spare Key (You Have a Working Key)
Adding a spare is always cheaper because we can “mirror” the existing authorization data.
| Vehicle / System | Estimated Locksmith Cost |
|---|---|
| VW Golf Mk4 (IMMO2) | $180 - $300 |
| VW Golf Mk5/Mk6 (IMMO3) | $300 - $450 |
| VW Golf Mk7 (IMMO4/MQB) | $400 - $600 |
| Audi A4 B6/B7 (IMMO3) | $300 - $450 |
| Audi A4 B8/B9 (IMMO4/5) | $450 - $700 |
| Audi Q5/Q7 Smart Key | $500 - $800 |
All Keys Lost (No Working Key)
If you have no working keys, the price jumps. We must perform a “security reset,” decode the door lock to cut a new blade, and extract the PIN data from scratch.
| Vehicle / System | Estimated Locksmith Cost |
|---|---|
| VW Golf Mk4 (IMMO2) | $300 - $450 |
| VW Golf Mk5/Mk6 (IMMO3) | $450 - $650 |
| VW Golf Mk7 (IMMO4/MQB) | $600 - $900+ |
| Audi A4 B6/B7 (IMMO3) | $450 - $650 |
| Audi A4 B8/B9 (IMMO4/5) | $700 - $1,200 |
| Audi Q5/Q7 Smart Key | $800 - $1,500 |
Note on Luxury Models: High-end Audi models with “Virtual Cockpit” digital dashes are the most expensive. The labor involved in safely accessing the security chip on these units is significant.
Specialist Locksmith vs Dealer
Sydney owners effectively have two choices: the dealership network (like those in Five Dock, Zetland, or Parramatta) or a mobile specialist.
Dealer Advantages
- Guaranteed OEM Parts: You get a key in a branded box.
- Factory Recourse: If something goes wrong with the car’s computer, they have the official backing to fix it.
- Warranty: Parts and labor come with a manufacturer warranty.
Dealer Disadvantages
- The “German Order” Delay: Dealerships rarely cut keys on-site. They order them pre-cut from the factory in Germany or Singapore, which can take 2 to 4 weeks.
- Towing is Mandatory: If you have lost all keys, you must tow your car to the dealer. A tow from Penrith or the Northern Beaches to a specialist dealer can cost hundreds of dollars alone.
- Higher Costs: Expect to pay 40% to 80% more than a private specialist.
Specialist Locksmith Advantages
- We Come to You: Mobile workshops can reach you whether you are stuck in a Westfield car park or your own driveway.
- Immediate Turnaround: Most specialists carry un-cut “virgin” VAG keys and can program them in about an hour.
- Lower Price Point: Without the showroom overheads, independent pricing is significantly sharper.
Specialist Locksmith Considerations
- Verify the Tools: Ask if they use tools like “AVDI” or “ODIS.” If they don’t know what those are, they likely cannot handle a modern VW.
- Check for MQB Capability: Confirm they can do “MQB platform” vehicles if your car is 2014 or newer.
- Get a Total Quote: ensure the price includes the key blade cutting, the remote programming, and the call-out fee.
Tips for Audi and VW Owners
- The “Virtual Cockpit” Warning: If your Audi or VW has a fully digital screen instead of physical dials, tell your locksmith immediately. These clusters are extremely sensitive and require different handling than standard ones.
- Get a Spare Now: We cannot stress this enough—paying $400 for a spare today is better than paying $1,200 and waiting for a tow truck next month.
- Avoid Used Keys: You generally cannot reprogram a used “second-hand” VW or Audi key from eBay. Once a smart key is paired to a vehicle (like a Golf VIN ending in 12345), its chip is “locked” and cannot be overwritten for a different car.
- Watch the Ignition Barrel: Older VWs (especially the Golf Mk5 and Mk6) are notorious for ignition barrel failure. If your key starts “catching” or feels sticky when you turn it, get it serviced before it jams completely.
Common Questions
Can I program a VAG key myself?
No. Unlike some older Japanese cars that had “on-board” programming methods (like opening and closing the door), VAG systems require connecting a computer to the OBD2 port. There is no manual “button dance” that will program these keys.
Will my car need to be towed to the locksmith?

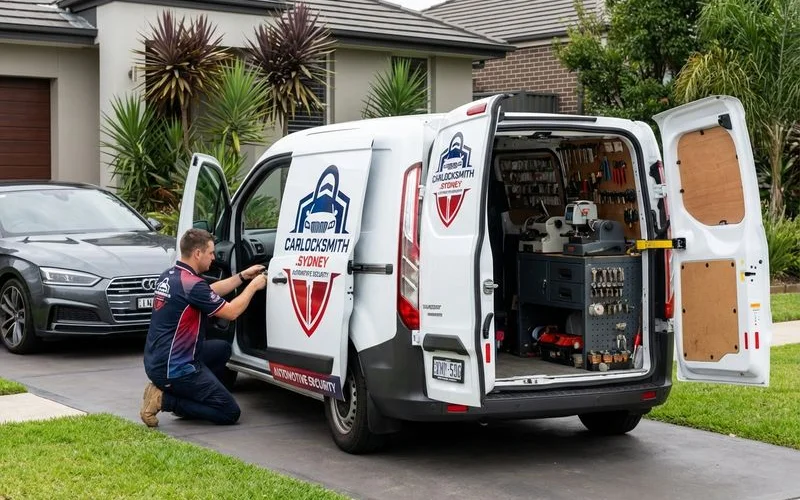

Not if you choose a mobile specialist. We build our vans to be mobile workshops, carrying the key cutting machines and programming tablets needed to do the entire job where the car stands.
How many keys can be programmed to one vehicle?
Most VAG models support up to 8 keys. However, when we program a new key, we usually have to clear the old list. This means you must bring all valid keys you have to the appointment so they can be added back in.
My key fob buttons stopped working but the key still starts the car. What should I do?
The remote locking and the engine immobiliser are two separate systems inside the key. A dead battery stops the buttons but won’t stop the car from starting (since the immobiliser chip is passive). Change the CR2032 battery first; if that fails, the remote transmitter might be damaged. For a step-by-step guide on battery swaps, see our article on how to replace your car key battery.
